Type

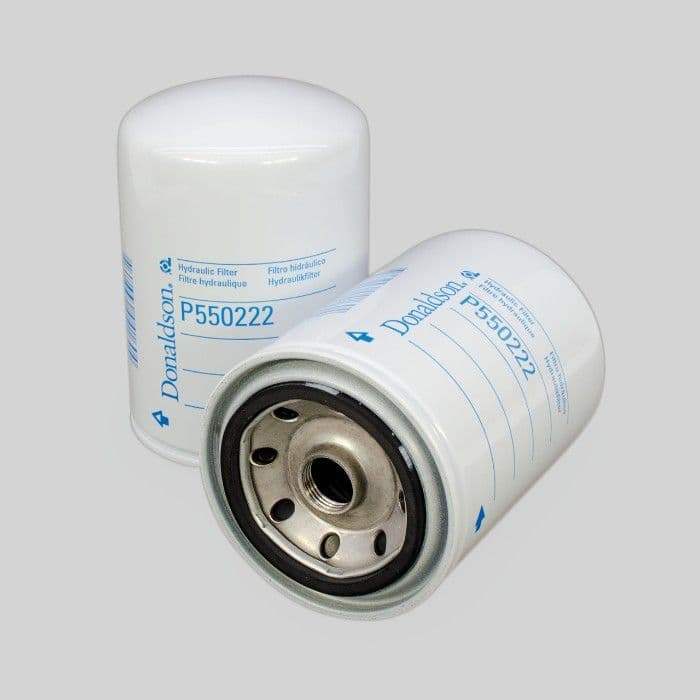

Hydraulic Filter

Style

Spin-On

Outer Diameter

93 mm

Thread Size

3/4-16 UN

Length

136.2 mm

Gasket OD

72 mm

Gasket ID

62 mm

Efficiency Beta 2

17 micron

Efficiency Test Std

SAE J1858

Anti-Drainback Valve

Yes

Bypass Valve

Yes

Bypass Valve Setting LR

0.5 bar (7 psi)

Bypass Valve Setting HR

0.7 bar (10 psi)

Media Type

Cellulose

Primary Application

ALLISON 25010543

UPC Code

742330041604
